Matching in R (III): Propensity Scores, Weighting (IPTW) and the Double Robust Estimator

Propensity Scores 101

The use of Propensity Scores was introduced by the famous economist Donald Rubin in the 70s. As the name hints, these are scores that measure the propensity of receiving the treatment for a given unit, conditional on X (the observable confounders): \(P(D=1|X)\).

Something cool about propensity scores is that they help us avoid the curse of dimensionality. Instead of dealing with the whole feature-space defined by the covariates X, we “collapse” it into a single variable that contains all the relevant information that explains the treatment assignment. In that sense, propensity scores constitute some sort of dimensionality reduction.

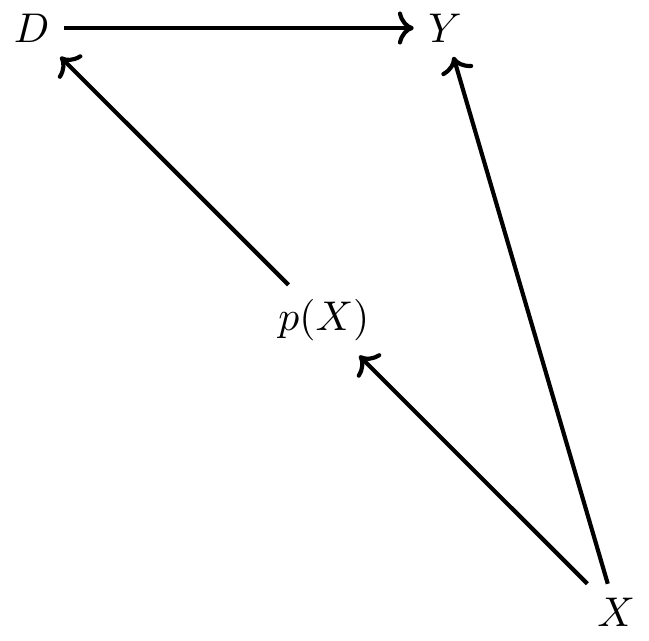

The DAG of a propensity score would be something like this:

DAG of the propensity score. Source: Causal Inference - The Mixtape.

As in every DAG, assumptions are expressed by the existence of arrows and also by the absence of them. In particular, note that there is no arrow going directly from X to D. This means we’re assuming that all the effect of confounders X on D is “mediated” by the propensity score. Put another way, we’re saying X can’t provide any extra information about D after conditioning on the propensity score.

Therefore, the propensity score is the only covariate we need to control for to achieve conditional independence and isolate the causal effect of \(D\):

\[ (Y^1, Y^0) \perp D | p(X) \]

This leads to the balancing property of propensity scores: the distribution of the covariates X should be the same for units with the same propensity score, no matter their treatment status:

\[ P(X|D=1, p(X)) = P(X|D=0, p(X)) \]

Common Support: We Still Need It, but It’s Easier to Achieve Now

The propensity score can free us from the curse of dimensionality but not from the need for common support. However, since there are now fewer dimensions, it’s easier to achieve this condition. Instead of needing treatment and control units on each combination of values of X (the original confounders), we just need to have treatment and control units across the propensity score range.

This implies that the observed propensity scores should be strictly between 0 and 1. It also implies that:

• To estimate the ATE, the distributions of propensity scores for the treated and untreated units should completely overlap.

• If we just want the ATT, the requirement is weaker: we only need the propensity score distribution of the treated to be a subset of the propensity score distribution of the untreated.

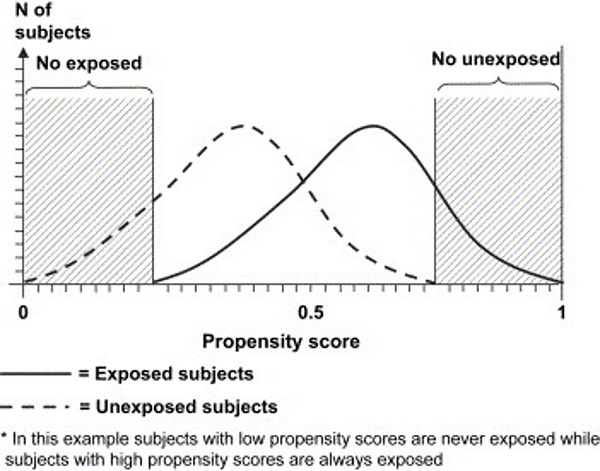

There are several ways of checking this. The most basic (but still useful) is to look at the histogram or density plot of \(p(X)\) by treatment status. Here is an example of a density plot where common support doesn’t hold (not even for the ATT).

Source: https://www.jclinepi.com/article/S0895-4356(05)00224-6/fulltext

Note that we don’t need both distributions to look the same (if that was the case, there would be no need for adjustment), but, in order to estimate the ATT, we do need a positive density or weight of the untreated distribution across all the treated group distribution. In the figure above, there is a big chunk in the upper section of the treated group distribution where we can’t find any untreated units, and that’s why we don’t have common support.

A slightly more sophisticated way of doing this is to create bins based on the propensity score and then check that there are observations of both groups in each bin (or, at least, in the bins with treated units, if we just want to estimate the ATT).

Common support checks on the propensity score can be useful as a diagnosis tool even if we use Regression for the estimation itself

Something interesting about these propensity score checks is that they can be useful even if we’re not going to use a Matching-based estimator. If you’re doing regression, you can use them as a diagnosis tool to see how extreme is the covariate imbalance your regression is dealing with, and how much extrapolation it will have to do.

Propensity Scores Estimation

Many of the properties mentioned above (e.g. the balancing property) refer to a theoretical true propensity score. In real life we don’t have access to those but we have to use estimated propensity scores instead.

After estimation, we can check that the balancing property holds by doing a stratification test (Dehejia and Wahba, 2002). This is, looking at bins of our data with similar propensity scores, checking if there are significant differences in their covariates, and thus determining if our propensity scores are “good enough”.

For the estimation itself, we have to fit a model using d (the treatment assignment) as the response variable and X (the covariates/confounders) as the predictors. A common model choice for this step is logistic regression, but we could also use nonparametric machine learning methods such as gradient boosting or random forest¹.

ML methods had been shown to perform better at removing covariate imbalance, especially, of course, in contexts of non-linearity and non-additive relationships, so it may be a good idea to go ahead with them if possible.

There are, however, a couple of things to keep in mind when using ML models. The first is to avoid overfitting, which is when our model learns from the noise or sampling variance instead of the true patterns in the data. Secondly, we shouldn’t optimise for accurate prediction of the treatment status but for balancing confounders across treated and untreated groups (which is what the “true” propensity score is supposed to do).

This last point also implies that we shouldn’t include in the propensity score model any variables that are not confounders (i.e. that don’t affect both the treatment status and the outcome) even if they improve the precision of the treatment status prediction². Including such variables is not only unhelpful but it can even be harmful to our causal inference endeavour as it adds noise to the propensity scores (you can see an example of this here in the book Causal Inference for the Brave and True).

We shouldn’t include in the propensity score model any variables that are not confounders

The good news is that there are several packages in R that optimise for covariate balance when estimating the scores. I took a quick look at them and liked a lot one named twang. This package is being actively developed by the RAND Corporation, has nice methods to measure covariate balance, and supports gbm and xgboost models to carry out the score estimation.

library(tidyverse)
library(twang)
data(lalonde)

ps_lalonde_gbm <-  ps(
  # This is D ~ X, a model with the treatment as responde and
  # the confounders as predictors
  treat ~ age + educ + black + hispan + nodegree +
    married + re74 + re75,
  data = lalonde,
  n.trees = 10000,
  interaction.depth = 2,
  shrinkage = 0.01,
  estimand = "ATT",
  stop.method = "ks.max",
  n.minobsinnode = 10,
  n.keep = 1,
  n.grid = 25,
  ks.exact = NULL,
  verbose = FALSE
)

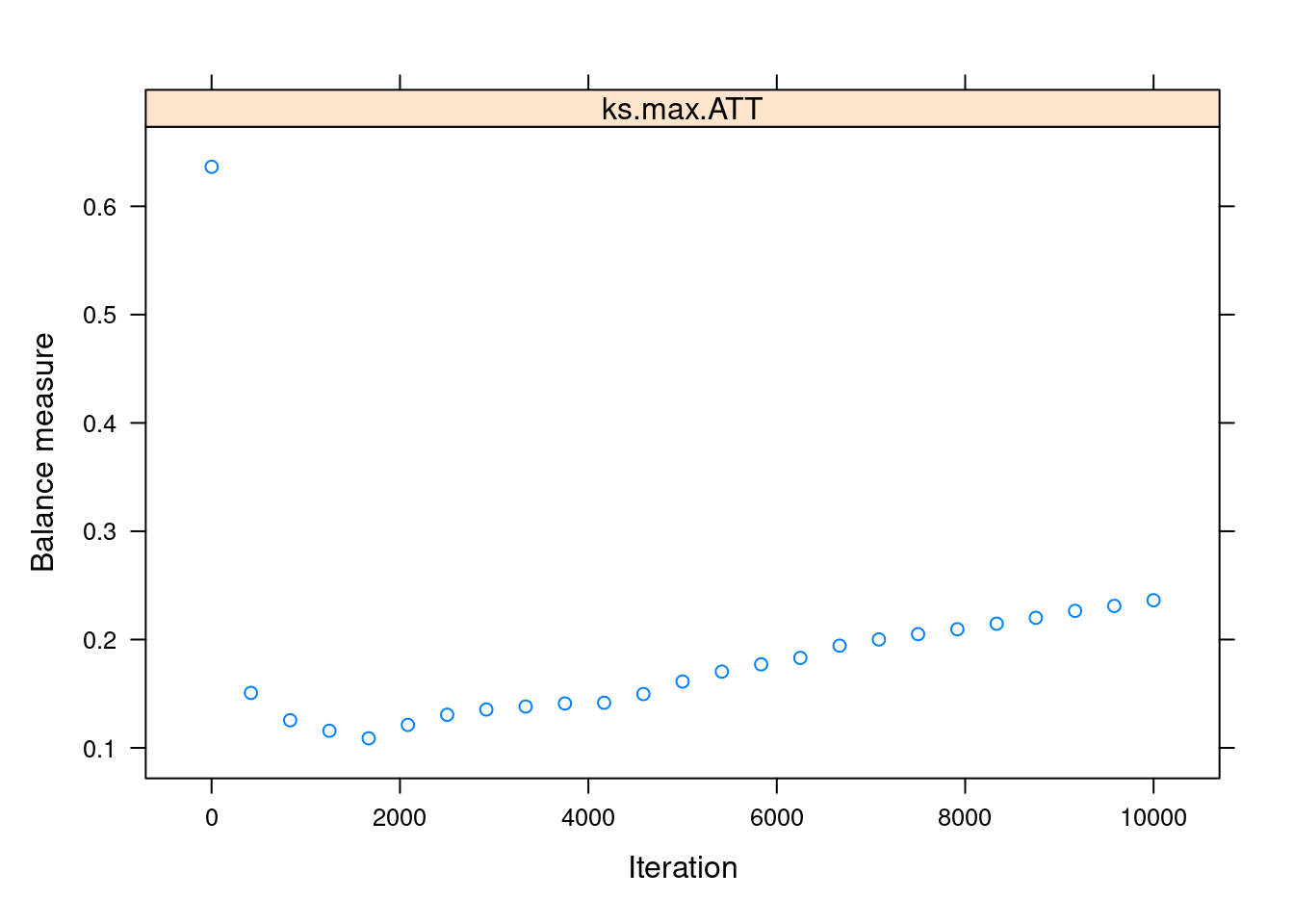

plot(ps_lalonde_gbm)

head(ps_lalonde_gbm$ps)

##   ks.max.ATT
## 1  0.6148900
## 2  0.6909022
## 3  0.9234996
## 4  0.9527646
## 5  0.9483888
## 6  0.9527646

Inverse Probability of Treatment Weighting (IPTW)

Great! We did it! We estimated the propensity scores! But how do we use them? A common sense and actually popular answer would be to do matching based on them: match each observation with the unit in the donor pool that has the closest propensity score.

Surprisingly, it turns out that matching on the propensity score is a bad idea. A paper from 2018 by King and Nielsen showed several problems with this once well-accepted approach, which may even lead to an increase in the imbalance between groups.

Okay, so matching is out, but then we go back to the first question: how do we use the propensity scores?! Well, there are several valid strategies, but the more recommended one seems to be one called inverse probability of treatment weighting (IPTW).

The key idea of IPWT, as its name says, is to weight the observations based on the probability of them having the opposite treatment status to what they actually have. For example, if a unit has a low propensity score (indicating it was unlikely to be treated) but it was actually treated, then it will receive a high weight and vice-versa: a treated unit with a high propensity score will receive a low weight.

Here the book Causal Inference for the Brave and True nicely sums up why we do this:

If [a treated individual] has a low probability of treatment, that individual looks like the untreated. However, [it] was treated. This must be interesting. We have a treated that looks like the untreated, so we will give that entity a high weight.

After weighting all the units in a group (treated or untreated) we’ll end up with a weighted sample that looks more like the other group. For estimating the ATE, we weight both groups so they both become more similar to each other simultaneously. On the other hand, if we just want the ATE, we weight only the control group in order to make it similar to the unweighted treated group⁴.

Cool, now that we got the intuition, let’s look at the estimators themselves. First, the ATE estimator, in which we weight both groups simultaneously:

library(rlang)

iptw_ate <- function(data,
                     outcome,
                     treatment,
                     prop_score) {

  # Renaming the columns for convenience
  # (i.e. not using {{ }} afterwards)
  data <- data %>%
    rename(outcome := {{outcome}},
           treatment := {{treatment}},
           prop_score := {{prop_score}})

  # Estimation itself
  data %>%
    mutate(iptw = ifelse(treatment == 1,
                         yes = outcome/prop_score,
                         no = -outcome/(1-prop_score))) %>%
    pull(iptw) %>%
    mean()

}

Note how the weighting is different (opposite) depending on the unit’s treatment status (makes sense). Also note that, as in the matching estimators from Part I, we subtract the untreated’s weighted outcome because we want the difference between the two groups (treated outcome minus untreated outcome)⁵.

There is also an ATT version of the estimator:

iptw_att <- function(data,
                     outcome,
                     treatment,
                     prop_score) {

  # Renaming the columns for convenience
  # (i.e. not using {{ }} afterwards)
  data <- data %>%
    rename(outcome := {{outcome}},
           treatment := {{treatment}},
           prop_score := {{prop_score}})

  # Estimation itself
  n_treated <- data %>% filter(treatment == 1) %>% nrow()

  data %>%
    mutate(iptw = ifelse(treatment==1,
                         yes = outcome,
                         no = -outcome*prop_score/(1 - prop_score))) %>%
    pull(iptw) %>%
    sum() %>%
    magrittr::divide_by(n_treated)

}

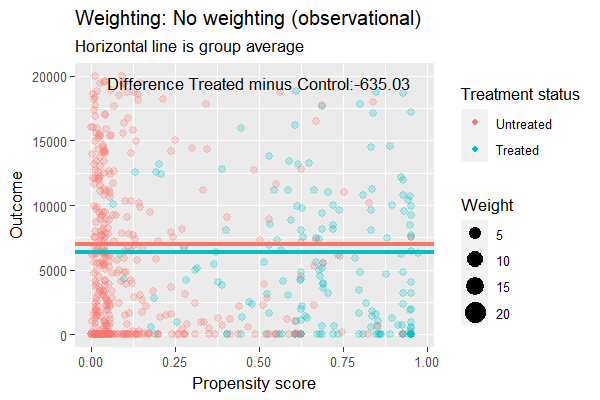

As we know, the treated units are left untouched for the ATT estimation. However, the weight given to the untreated is slightly different. Why? The Effect by Nick H-K gives us a nice explanation:

The 1/(1−p), which we did before, sort of brings the representation of the untreated group back to neutral, where everyone is counted equally. But we don’t want equal. We want the untreated group to be like the treated group, which means weighting them even more based on how like the treated group they are. And thus p/(1−p), which is more heavily responsive to p than 1/(1−p) is.

# Attaching the propensity scores to the original dataset
lalonde_w_ps <- lalonde %>%
  dplyr::select(treat, outcome = re78) %>%
  mutate(prop_score = ps_lalonde_gbm$ps[[1]])


lalonde_for_gganimate <-
  # To combine the two datasets we're going to create
  bind_rows(
    # Creating the Dataset with ATT weights
    lalonde_w_ps %>%
      mutate(
        weighting = "ATT",
        weights = ifelse(treat == 1,
                         yes = 1,
                         no = 1 * prop_score / (1 - prop_score))
      ),
    # Unweighted dataset
    lalonde_w_ps %>%
      mutate(weighting = "No weighting (observational)",
             weights = 1)
  ) %>%
  # Creating ordered factors so the legends look nice
  mutate(treat = factor(treat,
                        levels = c(0,1),
                        labels = c("Untreated", "Treated")),
         weighting = factor(weighting,
                            levels = c("No weighting (observational)",
                                       "ATT")))

# Auxiliary summary dataset: means
lalonde_means_gganimate <- lalonde_for_gganimate %>%
  group_by(treat, weighting) %>%
  summarise(mean_outcome = weighted.mean(outcome, weights),
            .groups = "drop")


# Auxiliary summary dataset: estimates
sdo <- function(df) {
  outcome_treat <- df %>%
    filter(treat == "Treated") %>%
    pull(mean_outcome)

  outcome_untreated <- df %>%
    filter(treat == "Untreated") %>%
    pull(mean_outcome)

  outcome_treat - outcome_untreated
}

lalonde_treat_effect <- lalonde_means_gganimate %>%
  group_nest(weighting) %>%
  mutate(sdo = map_dbl(data, sdo)) %>%
  dplyr::select(-data)

library(gganimate)
# requires: install.packages("gifski")

iptw_plot <- ggplot(lalonde_for_gganimate) +
  geom_point(aes(prop_score, outcome, color = treat,
                 size = weights, alpha = weights)) +
  geom_hline(data = lalonde_means_gganimate,
             aes(yintercept = mean_outcome, color = treat),
             size = 1.3,
             show.legend = FALSE) +
  geom_text(data = lalonde_treat_effect,
            aes(label = str_c("Difference Treated minus Control:", round(sdo, 2))),
            x =0.5,
            y =19500) +
  scale_alpha_continuous(range = c(0.2, 0.9),
                         guide = NULL) +
  ylim(c(0, 20000)) +
  labs(title = 'Weighting: {closest_state}',
       subtitle = "Horizontal line is group average",
       x = 'Propensity score',
       y = 'Outcome',
       color = 'Treatment status',
       size = 'Weight') +
  # gganimate code
  transition_states(
    weighting,
    transition_length = 2,
    state_length = 1
  ) +
  enter_fade() +
  exit_shrink() +
  ease_aes('sine-in-out')

# Exporting as GIF
animation_obj <- animate(iptw_plot, nframes = 150, fps=35,
        height = 400, width = 600, res=110,
        renderer = gifski_renderer())

anim_save("iptw.gif", animation_obj)

iptw_norm_att <- function(data,
                     outcome,
                     treatment,
                     prop_score) {

  # Renaming the columns for convenience
  # (i.e. not using {{ }} afterwards)
  data <- data %>%
    rename(outcome := {{outcome}},
           treatment := {{treatment}},
           prop_score := {{prop_score}})

  # Estimation itself
  treated_section <- data %>%
    filter(treatment == 1) %>%
    summarise(numerator = sum(outcome/prop_score),
              denominator = sum(1/prop_score))

  untreated_section <- data %>%
    filter(treatment == 0) %>%
    summarise(numerator = sum(outcome/(1-prop_score)),
              denominator = sum(1/(1-prop_score)))

  (treated_section$numerator / treated_section$denominator) -
    (untreated_section$numerator / untreated_section$denominator)
}

Variance of the Estimators: Bootstrap or Analytical Formulas?

As we come closer to the end of this series, an element the more stats savvy readers may be missing is standard errors estimation. After all, 99.99% of the time, we’ll get a difference greater than zero between treated and untreated but, without standard errors, we can’t tell if that’s due to a true causal effect or just because of chance (sample variance).

So, how do we compute standard errors for Matching and Inverse Probability Weighting?

An option that may look handy for this is bootstrapping. This procedure consists of obtaining a lot of samples with replacement from the original dataset and then computing the estimate on each of this samples. The result is a sample distribution of estimates, which can be used to estimate the standard deviation of the estimate itself.

And in fact, Bootstrapping is an appropriate way of obtaining standard errors for the IPTW estimator. It also has the advantage of taking into account the uncertainty of the whole process (both the propensity score estimation AND the construction of the weighted samples).

Bootstrap standard errors are often included in packages that perform IPTW, but we can also code them ourselves by passing the data and a bootstrap-compatible function to boot::boot()⁷. Here is a code example:

library(boot)

# This example is an adaptation of this code script shown in The Effect: https://theeffectbook.net/ch-Matching.html?panelset6=r-code7#panelset6_r-code7
iptw_boot <- function(data, index = 1:nrow(data)) {

  # Slicing with the bootstrap index
  # (this enables the "sampling with replacement")
  data <- data %>% slice(index)

  # Propensity score estimation
  ps_gbm <-  ps(
    treat ~ age + educ + black + hispan + nodegree +
      married + re74 + re75,
    data = data,
    n.trees = 10000,
    interaction.depth = 2,
    shrinkage = 0.01,
    estimand = "ATT",
    stop.method = "ks.max",
    n.minobsinnode = 10,
    n.keep = 1,
    n.grid = 25,
    ks.exact = NULL,
    verbose = FALSE
  )

  # Adding the propensity scores to the data
  data <- data %>%
    mutate(prop_score = ps_lalonde_gbm$ps[[1]]) %>%
    rename(outcome = re78)

  # IPTW weighting and estimation
  treated_section <- data %>%
    filter(treat == 1) %>%
    summarise(numerator = sum(outcome/prop_score),
              denominator = sum(1/prop_score))

  untreated_section <- data %>%
    filter(treat == 0) %>%
    summarise(numerator = sum(outcome/(1-prop_score)),
              denominator = sum(1/(1-prop_score)))

  (treated_section$numerator / treated_section$denominator) -
    (untreated_section$numerator / untreated_section$denominator)

}

b <- boot(lalonde, iptw_boot, R = 100)
b

##
## ORDINARY NONPARAMETRIC BOOTSTRAP
##
##
## Call:
## boot(data = lalonde, statistic = iptw_boot, R = 100)
##
##
## Bootstrap Statistics :
##     original   bias    std. error
## t1* -632.156 222.9228    1486.774

Sadly, bootstrapping can’t be used with the Matching estimators, only with IPTW. The reason is that Matching makes a sharp in/out decision when constructing the matched samples (in contrast to the more gradual weighting done by the IPTW estimator), and this kind of sharp process just doesn’t allow the bootstrap to produce an appropriate sampling distribution⁸.

Because of that, we have to use analytical formulas to compute the standard errors of our estimates when doing Matching. These expressions can be quite complex and, what’s more, they have different formulations depending on the choices we made regarding the estimation process. Fortunately, most R packages designed for Matching (such as MatchIt) already implement appropriate standard error formulas and report the corresponding SEs in their output. So, if you’re a practitioner like me, it’s better to just stick to these “package-generated” standard errors instead of attempting to compute them manually.

Double Robust Estimator

In Part 2, we saw the strengths and weaknesses of Matching and Regression when adjusting for confounders, along with examples of one of them succeeding in estimating the true causal effect while the other method failed.

But what if we could have the best of both worlds and use an estimator that leverages both Regression and Matching to get the causal effect right most of the time? Sounds pretty cool, right?

Well, that’s precisely what the Double Robust Estimator does. It combines the Regression and the Matching estimations in such a way that we require just one of these methods to be right in order to correctly estimate the treatment effect. Matching right and Regression wrong = we’re fine. Matching wrong and Regression right = we’re fine too.

Of course, not even this super cool estimator can solve our problems if both methods have issues. We need at least one of them to be appropriately specified. Still, it’s a big improvement over using Regression or Matching on their own.

Before showing you a code definition/implementation, note that double-robustness is actually a property that many estimators have, so if you look at the literature, you can find a lot of “double robust estimators”. For now, let’s just look at the one that is shown in Causal Inference for the Brave and True:

# Here I REALLY wanted to parametrise the outcome, treatment and
# covariates variable names, but doing so required to add a lot of
# rlang "black magic" code that made the script harder to
# understand, so what you're seeing here is an implementation
# with the `lalonde` variable names hardcoded.

# TL:DR, you must change the variables names if you
# want to re-use this function with your own data

double_robust_estimator <- function(data,
                        # `index` makes the estimator bootstrap-able
                        index = 1:nrow(data)) {

    data <- data %>% slice(index)

  # Getting the "ingredients" to compute the estimator
  # 1. Propensity scores
  ps_gbm <-  ps(
    # D ~ X
    treat ~ age + educ + black + hispan + nodegree +
      married + re74 + re75,
    data = data,
    n.trees = 10000,
    interaction.depth = 2,
    shrinkage = 0.01,
    estimand = "ATT",
    stop.method = "ks.max",
    n.minobsinnode = 10,
    n.keep = 1,
    n.grid = 25,
    ks.exact = NULL,
    verbose = FALSE
  )

  ps_val <- ps_gbm$ps[[1]]

  # 2. Regression model for treated
  lm_treated <-
    lm(re78 ~ age + educ + black + hispan + nodegree +
      married + re74 + re75,
      data = data %>%
        filter(treat == 1))

  mu1 <- lm_treated$fitted.values

# 3. Regression model for untreated
  lm_untreated <-
    lm(re78 ~ age + educ + black + hispan + nodegree +
         married + re74 + re75,
       data = data %>%
         filter(treat == 0))

  mu0 <- lm_untreated$fitted.vales

  # 4. Outcomes and Treatment status
  outcome <- data$re78
  treatment <- data$treat

  # ✨THE DOUBLE ROBUST ESTIMATOR ✨
  estimator <-
    mean(treatment * (outcome - mu1)/ps_val + mu1) -
      mean((1-treatment)*(outcome - mu0)/(1-ps_val) + mu0)

  estimator
}

# Estimation through bootstrap to get standard errors
# 'dre' stands for Double Robust Estimator
b_dre <- boot(lalonde, double_robust_estimator, R = 100)

b_dre

##
## ORDINARY NONPARAMETRIC BOOTSTRAP
##
##
## Call:
## boot(data = lalonde, statistic = double_robust_estimator, R = 100)
##
##
## Bootstrap Statistics :
## WARNING: All values of t1* are NA

Final Remarks: The Most Important Question

We’ve seen a lot of methods and estimators on this three-parter. Sometimes the differences between them are pretty clear, but a lot of times they are much more nuanced. However, if you had to bring only one idea home, I think it should be the Conditional Independence concept we reviewed in the first part (also known as “selection on observables”) and how none of these methods can help you if your data doesn’t meet that assumption.

So, are the confounders directly available in your data as variables you can condition on? THIS is the first-order question you should ask yourself before doing anything else. Only if you have reasons to answer “yes!” to this question you can start weighing if you should perform Regression, Subclassification, Exact Matching, Approximate Matching, Inverse Probability Weighting, or use the Double Robust Estimator.

To check if the “selection on observables” is a credible assumption, you should always summarise your current knowledge about the data generating process in a DAG and then see if this DAG shows a way to close all the backdoors by conditioning on observables⁹. The package ggdag and its function ggdag_adjustment_set come in handy for this.

If, after doing this, you find that some of your confounders are unobservable, then, as I said before, none of the estimators we’ve just reviewed are appropriate for estimating the causal effect and you’ll have to look for other causal inference methodologies. The good news is that starting with the next blog post, I’ll start reviewing techniques that deal with unobservable confounders, such as Instrumental Variables, Differences in Differences, and Regression discontinuity design, so stay tuned!

References 📚

• Causal Inference: The Mixtape - Scott Cunningham. Chapter 5.

• The Effect - Nick Huntington-Klein. Chapter 14.

• Causal Inference for the Brave and True - Matheus Facure Alves. Chapters 11 and 12.

Your feedback is welcome! You can send me comments about this article to my email.
